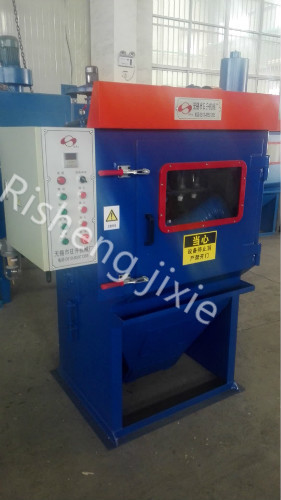

Bearing Sand/Shot Blasting Machine For Casting And Forging,Metal Finishing,Polishing Machine With Dedusting System
Features
1. with Japan (thick ground) technology,advanced design,easy to use.
2. the introduction of the "Japanese technology" and improved on the design of cyclone separation system,a large quality of sand blasting to enhance the efficiency of 30%,while 120#--320# fine-tune the separation of small abrasive ,which can save about 20% of abrasive waste.
3. the aircraft cabin is relatively spacious,suitable for small medium and large cabin volume of the workpiece within the scope of work.
4. It can be fixed dial and matching cart wheel configuration,suitable for heavier parts of the pick and place and support operation
5. in the case gaixing ji can not carry heavy and large workpiece,our company has a strong non-standard design production capacity,can provide you with system solutions and implementation.
Scope of application
Mainly used in large,larger and heavier work of sand blasting,such as shell mould,computer and gravity mould etc.large pressure of sand blasting workpiece.
Specifications
| Model | 1010A Environmentally friendly sand blasting machine |
| Work cabinet size | 1000×1000×800(mm) |
| Machine lamp | 220v 20W(energy saving lamp) |
| Machine load | ≤100kg |
| Machine net weight | 220kg |
| Power supply | 220V 50Hz(we can make as your request) |
| Motor of dust collector | 220V 50Hz 1100W |
| Separator wind rate | 20m3/min |
| Compressing air source | 2-7bar(kg/cm²).1-1.5m3/min |
| Trolley table diameter | 600mm |
| Dedust mode | Bag type |
| External size of machine | 3100×1000×2300(mm)
|
